The BIG STAC series, the stationary type, is the biggest series for single phase voltage
regulators. Comprised with 5000VA and 10kVA models, it is a series of powerful enough not
only for household use, but also for factories, shops and offices.
This is the professional type of regulators.

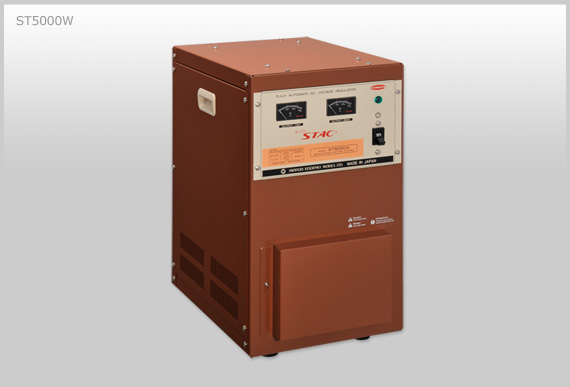

| Model | ST5000W | ST7000W | ST10KW |
|---|---|---|---|
| Input voltage | AC50-130V/160-240V , 50/60Hz | ||
| Output voltage | AC110V/220V , 50/60Hz | ||
| MAX. Capacity | 5000VA | 7000VA | 10kVA |
| Control system | Servo motor control | ||
| Dimensions (mm) |
270(W) x480(H) x420(D) | 270(W) x480(H) x420(D) | 270(W) x480(H) x420(D) |
| Net weight (kgs) |
22kgs.(Approx.) | 34kgs.(Approx.) | 36kgs.(Approx.) |
| Model | ST5000H |
|---|---|
| Input voltage | AC160-240V, 50/60Hz |
| Output voltage | AC220V, 50/60Hz |
| MAX. Capacity | 5000VA |
| Control system | Servo motor control |
| Dimensions (mm) | 270(W) x 480(H) x420(D) |
| Net weight (kgs) | 22kgs. (Approx.) |
| Model | ST5000M |
|---|---|
| Input voltage | AC160-240V, 50/60Hz |
| Output voltage | AC110/220V, 50/60Hz |
| MAX. Capacity | 5000VA |
| Control system | Servo motor control |
| Dimensions (mm) | 270(W) x 480(H) x420(D) |
| Net weight (kgs) | 22kgs. (Approx.) |
| Model | ST10KH |
|---|---|
| Input voltage | AC160-240V, 50/60Hz |
| Output voltage | AC220V, 50/60Hz |
| MAX. Capacity | 10kVA |
| Control system | Servo motor control |
| Dimensions (mm) | 270(W) x 480(H) x420(D) |
| Net weight (kgs) | 33kgs. (Approx.) |
| Model | ST10KM |
|---|---|
| Input voltage | AC160-240V, 50/60Hz |
| Output voltage | AC110/220V, 50/60Hz |
| MAX. Capacity | 10kVA |
| Control system | Servo motor control |
| Dimensions (mm) | 270(W) x 480(H) x420(D) |
| Net weight (kgs) | 33kgs. (Approx.) |
